What Is Drawdown in Trading? Maximum Drawdown Explained
Maximum drawdown measures your strategy's worst-case loss. Learn the formula, acceptable ranges, and why recovery speed reveals more than the percentage alone.
Drawdown in trading is the peak-to-trough decline in your account equity before a new high is reached. Maximum drawdown (Max DD) measures the largest such decline as a percentage. For example, if your account peaks at $10,000 and drops to $7,500 before recovering, your max drawdown is 25%. Research by Bailey & Lopez de Prado (2014) shows recovery typically takes 2-3x the drawdown formation period — making recovery speed as important as the percentage itself.
What Does Drawdown Mean in Trading?
Drawdown is the peak-to-trough decline in your trading account equity before a new high is reached. It measures how far your account falls from its highest point during a specific period.
For example, if your account grows to $10,000 (a new peak) and then drops to $7,500 before eventually recovering, you experienced a $2,500 drawdown — or 25%.
Absolute drawdown measures the decline from your initial capital. Maximum drawdown measures the largest peak-to-trough decline at any point. Relative drawdown expresses the decline as a percentage of equity at the peak. Maximum drawdown is the most widely used because it captures worst-case risk regardless of when it occurred.
Drawdown matters more than win rate alone because it determines whether traders can psychologically and financially survive a strategy's losing periods. Van Tharp (Trade Your Way to Financial Freedom, 2006) identified drawdown as the #1 factor in whether traders abandon a strategy prematurely.
Drawdown vs. loss: A single losing trade is a loss. Drawdown is the cumulative decline across multiple trades before recovery. A strategy can have small individual losses but dangerous drawdowns if losses cluster together.
How to Calculate Maximum Drawdown
Trough Value = lowest equity point before recovery begins
Peak Value = highest equity point before the decline
Worked example: Your account peaks at $10,000, then drops to $7,500 before recovering. Max DD = ($7,500 − $10,000) / $10,000 × 100% = −25%.
Recovery Asymmetry: Why Drawdowns Are Worse Than They Look
The math of recovery is asymmetric. The deeper the drawdown, the disproportionately larger the gain needed to break even:
| Drawdown | Required Recovery Gain | Difficulty |
|---|---|---|
| 10% | 11.1% | Manageable |
| 20% | 25.0% | Moderate |
| 30% | 42.9% | Difficult |
| 50% | 100.0% | Severe |
| 70% | 233.3% | Near-impossible |
Recovery asymmetry is a mathematical identity: Recovery % = 1/(1 − Drawdown%) − 1. A 50% loss always requires a 100% gain. This is not a model or estimate — it's arithmetic. This is why professional risk managers focus on preventing large drawdowns rather than recovering from them.
What Is an Acceptable Maximum Drawdown?
Acceptable drawdown depends on strategy type and trader profile. Here are research-backed benchmarks:
By Strategy Type
| Strategy Type | Typical Max DD | Acceptable Range | Source |
|---|---|---|---|
| Trend Following | 20-40% | Up to 30% | Hurst, Ooi & Pedersen (2017) |
| Mean Reversion | 10-25% | Up to 20% | Chan, Algorithmic Trading (2013) |
| Scalping / HFT | 5-15% | Up to 10% | Prop firm standards (industry) |
| Buy & Hold (S&P 500) | 30-55% | Benchmark only | Historical data (56.8% in 2007-2009) |
By Trader Type
| Trader Type | Acceptable Max DD | Warning Level |
|---|---|---|
| Retail (swing) | <15-20% | >25% |
| Day trader | <5-10% | >15% |
| Institutional | <10% | >15% |
| Prop firm | <5-8% | >10% |
Key Drawdown Metrics at a Glance
| Metric | What It Measures | Good Value | Warning Zone |
|---|---|---|---|
| Maximum Drawdown % | Largest peak-to-trough decline | <20% | >40% |
| Average Drawdown % | Mean of all drawdown periods | <10% | >20% |
| Longest Recovery (trades) | Trades to recover from worst DD | <50 | >100 |
| Recovery Factor | Net Profit / Max Drawdown | >3.0 | <1.5 |
| Calmar Ratio | CAGR / Max Drawdown | >1.0 | <0.5 |
Drawdown tolerance relates directly to position sizing and leverage. But drawdown percentage alone tells only half the story. What matters equally is how long recovery takes — which is what the following sections analyze.
What Is Drawdown Recovery?
Drawdown Recovery is the number of trades required to return to a previous equity high after experiencing a drawdown. This metric reveals how long your capital stays underwater before reaching new highs.
How Long Should Recovery Take? The Triple Penance Rule
According to the Triple Penance Rule by Bailey & Lopez de Prado (2014), recovery time typically exceeds the duration of the drawdown by a factor of 2-3x. This research-backed framework helps explain why extended recovery periods are so psychologically and financially damaging.
BacktestBase's Practical Framework: Based on this research, we classify recovery patterns to help traders assess strategy risk:
• Recovery within 1-10 trades
• Quick return to equity highs
• Sharp V-shaped recovery curves
• Indicates resilient strategy edge
• Recovery takes 11-25 trades
• Gradual, inconsistent recovery
• Multiple false recovery attempts
• May warrant strategy review
• Recovery exceeds 25+ trades
• Extended underwater periods
• Aligns with Triple Penance findings
• Requires comprehensive analysis
How to Analyze Max Drawdown Recovery Duration
Follow these five steps to assess your strategy's drawdown recovery health:
Calculate Max Drawdown
Identify the peak equity value and lowest trough before recovery using the formula: (Peak - Trough) / Peak × 100. For example, if your account peaks at $10,000 and drops to $8,000, your max drawdown is 20%.
Measure Recovery Duration
Count how many trades it takes to return to the previous equity peak. This is more revealing than recovery time in days—trade count shows how many opportunities your strategy needs to recover.
Apply the 3x Principle
Compare recovery duration to drawdown formation. Research suggests healthy recovery takes approximately 3x the formation period. If a drawdown formed over 5 trades, expect ~15 trades to recover.
Assess Win/Loss Patterns
Check if win rates and streak patterns changed during the drawdown period. Deteriorating patterns during underwater periods indicate potential edge degradation.
Classify the Pattern
Determine if recovery pattern is healthy (quick V-shaped bounce), concerning (extended U-shaped), or dangerous (prolonged L-shaped struggle). See the framework in Section 05 above.
BacktestBase automates these calculations when you upload your TradingView backtest. You'll see max drawdown, recovery duration in trades, and win/loss patterns visualized on your equity curve—helping you manually identify drawdown patterns without spreadsheet work.
What Do Recovery Patterns Look Like in Real Strategies?
Let's analyze real strategy patterns to understand how recovery duration reveals strategy health:

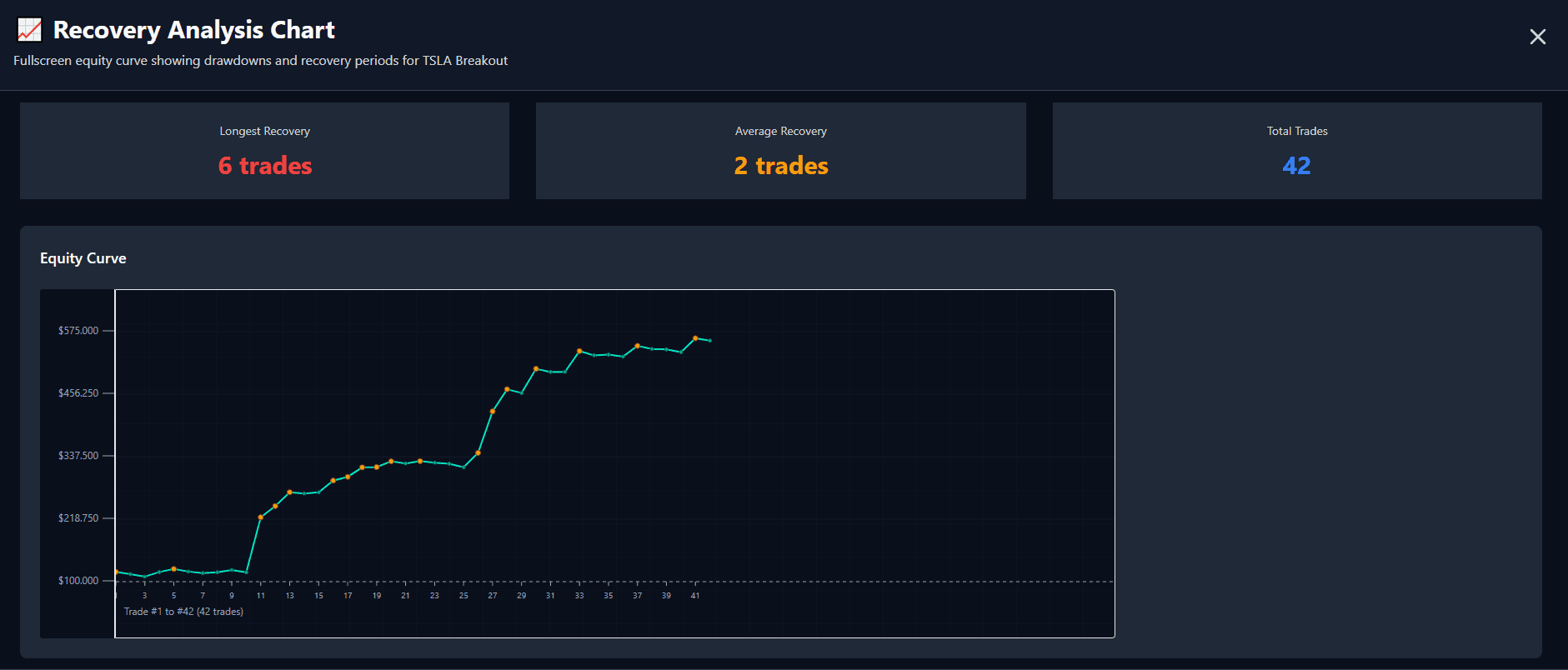

Max Drawdown: 6.10%
Longest Recovery: 6 trades
Average Recovery: 2 trades
✓ Healthy V-shape pattern

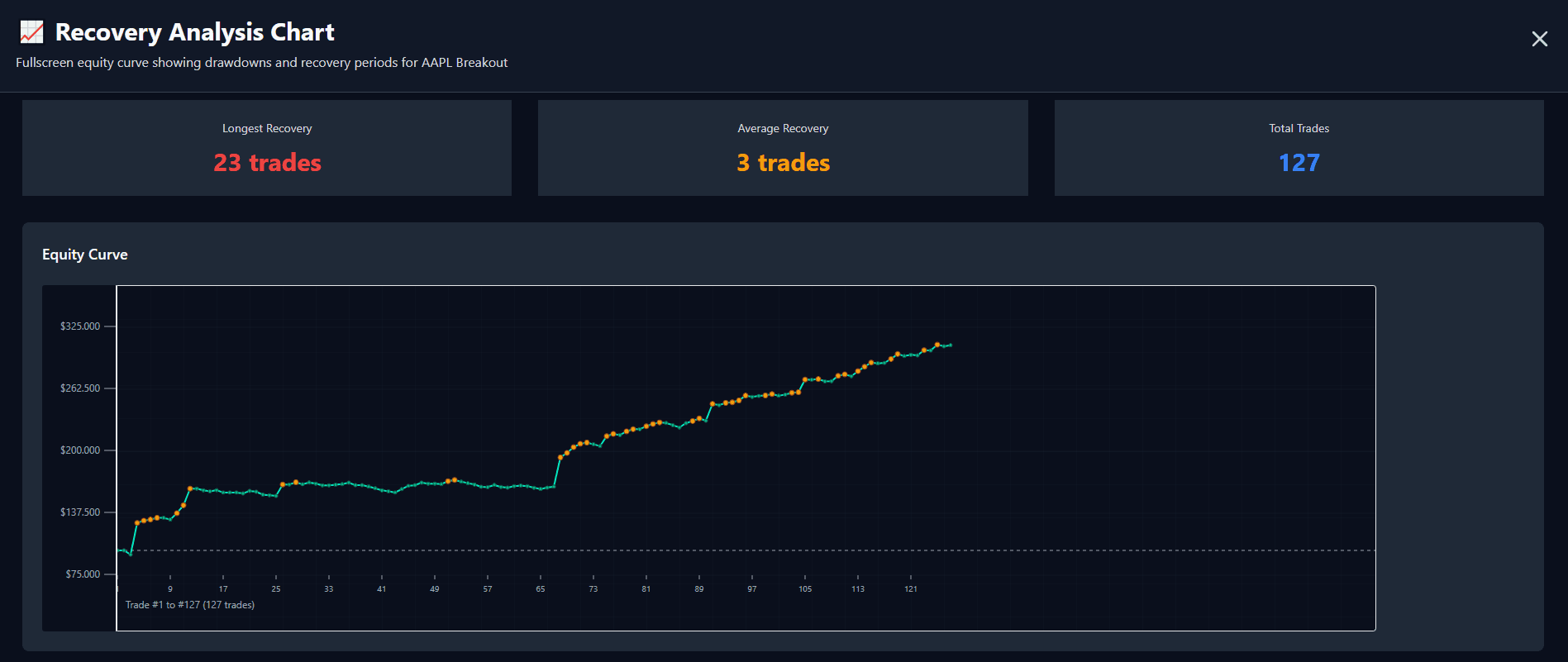

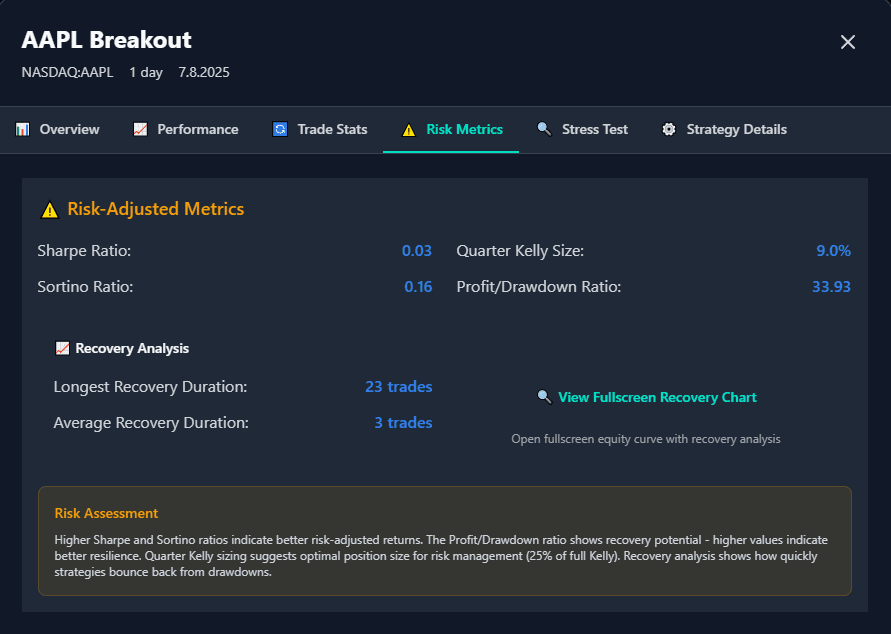

Max Drawdown: 12.3%
Longest Recovery: 23 trades
Average Recovery: 3 trades
⚠️ Concerning outlier recovery

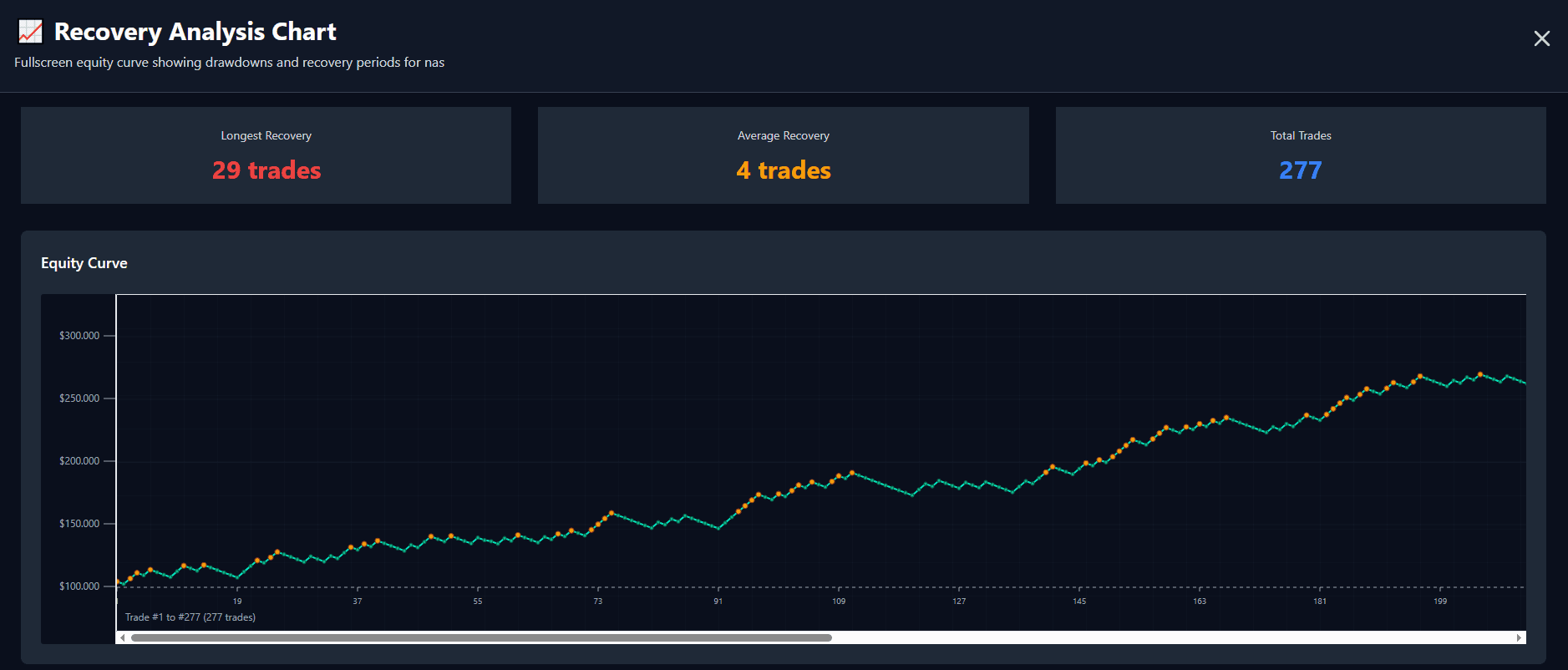

Max Drawdown: 18.7%
Longest Recovery: 29 trades
Average Recovery: 4 trades
🚨 Dangerous extended periods
Key Insight: Notice how the TSLA strategy with only 6.10% max drawdown has excellent recovery (2-trade average), while the NAS strategy with higher drawdown also suffers from dangerous 29-trade recovery periods. Recovery duration reveals what drawdown percentage hides.
Why Do Most Traders Miss This Critical Risk Signal?
The Pain
Focusing only on max drawdown percentage gives false security
Extended recovery periods cause traders to abandon strategies at the worst time
TradingView only shows you the depth, not how long you'll be underwater
The Solution
BacktestBase calculates recovery duration automatically from your trade data
Visual recovery charts show healthy vs. dangerous patterns at a glance
Monte Carlo stress testing reveals worst-case drawdown depths
"My strategy has a 15% maximum drawdown. Is that safe?" The answer depends entirely on how long it takes to recover, not just the depth of the drawdown. Kahneman & Tversky's Prospect Theory (Econometrica 47(2), 1979, pp. 263-291) (1979) shows losses create 2-2.5x more psychological pain than equivalent gains, explaining why extended drawdowns cause traders to abandon viable strategies.
A 50% drawdown requires a 100% gain to recover. A 20% loss needs 25% to break even. This asymmetric recovery math compounds the psychological burden—the deeper the drawdown, the disproportionately longer the recovery feels, even with consistent returns.
We built BacktestBase because recovery duration is the missing metric in most trading analysis tools. TradingView shows you the depth of drawdowns, but not how long you'll be underwater. Our platform automatically calculates recovery patterns from your trade data, helping you identify strategies that recover quickly versus those that leave you stuck in extended drawdowns.
How Does BacktestBase Compare to Manual Analysis?
| Analysis Feature | BacktestBase | TradingView | Spreadsheets |
|---|---|---|---|
| Recovery Duration Tracking | ✓Automatic | ✗Not available | Manual calculation |
| Trade-by-Trade Analysis | ✓Visual charts | Limited data | Complex formulas |
| Monte Carlo Stress Testing | ✓1,000+ simulations | ✗Not available | ✗Not possible |
| Time to Analyze | ✓Instant (seconds) | Minutes per strategy | ✗Hours of manual work |
| Risk of Ruin Analysis | ✓Integrated with Monte Carlo | ✗Not available | ✗Complex formulas required |
How to Manage Drawdown Risk
Understanding drawdown is only useful if you act on it. Here are four evidence-based approaches to managing drawdown risk:
1. Position Sizing to Control Max Drawdown
Your position size is the single largest determinant of maximum drawdown. Ralph Vince (The Mathematics of Money Management, 1992) demonstrated that optimal position sizing (optimal f) directly controls the tradeoff between returns and maximum drawdown. Smaller positions = smaller drawdowns, at the cost of lower returns.
2. Diversification Across Uncorrelated Strategies
Running multiple strategies with low correlation reduces portfolio-level drawdown. When one strategy enters drawdown, uncorrelated strategies may be profitable, smoothing the overall equity curve.
3. Monte Carlo Simulation for Worst-Case Estimation
Monte Carlo stress testing runs 1,000+ randomized scenarios on your trade history to reveal realistic worst-case drawdowns. Your backtest's max drawdown is just one path — Monte Carlo shows the full distribution of possible drawdowns, including scenarios far worse than what historical data showed.
4. Drawdown-Based Stop Rules
Define in advance when to stop trading a strategy. Common rules: pause at 1.5x the backtest's max drawdown, or halt if recovery exceeds 3x the formation period (Triple Penance Rule). Having predefined rules removes emotion from the decision. See our losing streak calculator to understand the probability of extended losses.
BacktestBase calculates max drawdown, recovery duration, Monte Carlo worst-case scenarios, and risk of ruin automatically from your TradingView exports. Upload once and get a complete drawdown risk profile in seconds.
Key Terms: Drawdown Glossary
- Maximum Drawdown
- The largest peak-to-trough decline in account equity, expressed as a percentage of peak value.
- Recovery Duration
- The number of trades required to return to a previous equity high after experiencing a drawdown.
- Underwater Period
- The time spent below a previous equity peak, measuring how long capital is 'underwater' during drawdown recovery.
- V-Shape Recovery
- A healthy pattern where equity drops and quickly rebounds to new highs, indicating strong strategy resilience.
- Slow Bleed Pattern
- A dangerous pattern where drawdowns persist with minimal recovery progress, indicating systematic strategy problems.
- Peak Equity
- The highest point your account balance has reached, used as reference for measuring subsequent drawdowns.
- Recovery Ratio
- The relationship between profit potential and recovery time, helping assess risk-adjusted strategy viability.
- Trade-by-Trade Analysis
- Tracking strategy performance after each individual trade to identify recovery patterns and drawdown cycles.
- Absolute Drawdown
- The decline from initial capital to the lowest point, regardless of any intermediate peaks. Differs from maximum drawdown which measures from the highest peak.
- Relative Drawdown
- Drawdown expressed as a percentage of equity at the time of the peak, rather than as an absolute dollar amount. Most commonly used because it accounts for account growth.
- Recovery Factor
- Net profit divided by maximum drawdown. Measures reward per unit of risk. A recovery factor above 2 is the minimum threshold; above 3.0 is considered good. For example, a factor of 3.0 means the strategy earned 3x its worst drawdown.
Frequently Asked Questions
What is a maximum drawdown?
Maximum drawdown (Max DD) is the largest peak-to-trough percentage decline in account equity before a new equity high is reached. It measures the worst-case loss scenario during a specific period and is the most widely used risk metric for evaluating trading strategy performance. For example, if your equity peaks at $10,000 and falls to $7,000 before recovering, your maximum drawdown is 30%.
How do you calculate maximum drawdown?
Maximum drawdown = (Trough Value - Peak Value) / Peak Value × 100%. Track the running peak of your equity curve. At each point, calculate the percentage decline from that peak. The largest percentage decline across the entire period is your maximum drawdown. BacktestBase calculates this automatically from your uploaded TradingView backtest data.
How much drawdown is acceptable in trading?
Acceptable drawdown depends on strategy type: 20-30% for trend-following strategies, 10-20% for mean-reversion, and under 10% for scalping strategies. Your expected return should be at least 2-3x your maximum drawdown (recovery factor > 2). A strategy with 50%+ drawdown is generally considered too risky because it requires a 100% gain just to break even.
What causes large drawdowns in trading?
Large drawdowns typically result from: (1) overleveraged position sizing relative to account size, (2) correlated positions that all lose simultaneously during market stress, (3) black swan events or sudden volatility spikes, (4) strategy overfitting that breaks down in live market conditions, or (5) holding losing positions too long without stop-losses. Monte Carlo stress testing can estimate worst-case drawdown scenarios before they happen.
Why does drawdown recovery time matter more than percentage?
Recovery time reveals strategy health that drawdown percentage hides. According to the Triple Penance Rule (Bailey & Lopez de Prado, 2014), recovery typically takes 2-3x the drawdown formation period. A strategy with a small drawdown but extremely long recovery may be more dangerous than one with a larger drawdown that recovers quickly — because extended underwater periods indicate the strategy's edge may be degrading.
